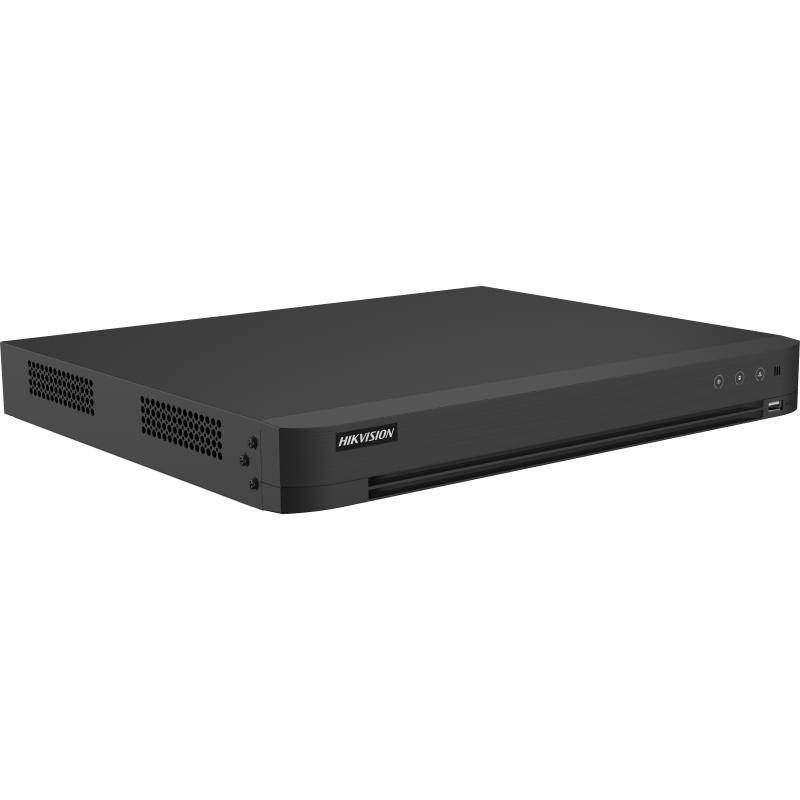

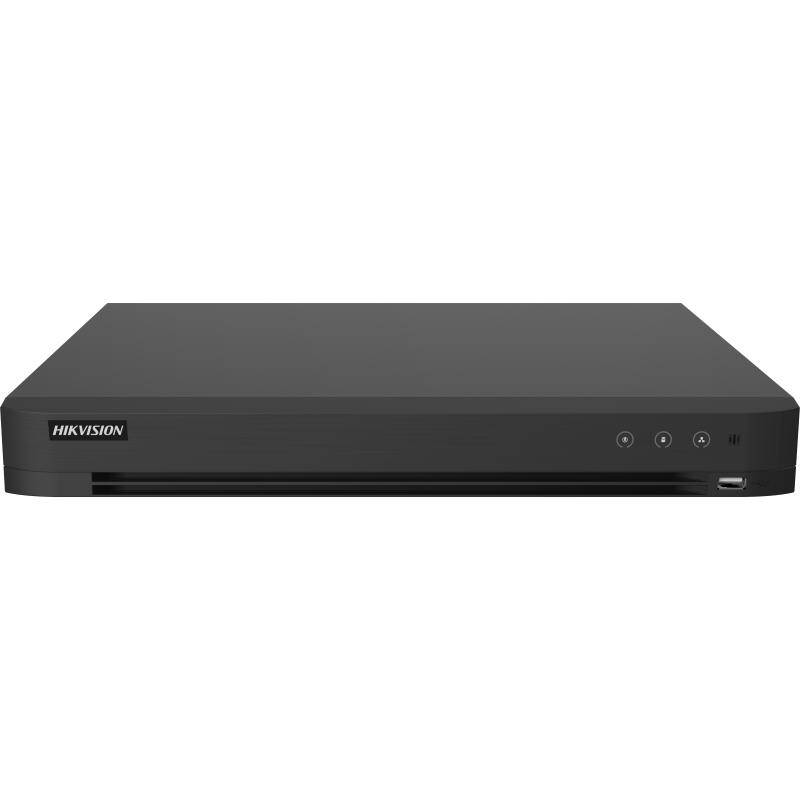

Hikvision iDS-7232HQHI-M2/XT 32-ch 1080p 1U H.265 AcuSense DVR 3K/5MP

iDS-7232HQHI-M2/XT
32-ch 1080P 1U H.265 AcuSense DVR
 Key Feature
 32 channels and 2 HDD 1U AcuSense DVR
 Support 4-ch Facial Recognition or 8-ch advanced model
Perimeter Protection based on Deep Learning algorithm
 Support 8-ch AcuSearch Technology
 Efficient H.265 pro+ compression technology
 Encoding ability up to 3K/ 5MP Lite@12fps
 Up to 40 channels IP camera inputs, each channel up to
6MP
 Up to 24*1080P@30fps decoding ability
 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
 Support All channels Motion Detection Technology
 Support All channels HDTVI Two-Way Audio Technology
Compression and Recording
 H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
 Recording at up to 3K / 5 MP Lite resolution
Smart Function
 Up to 32 channels (analog channel) Motion Detection 2.0
 Up to 8 channels (advanced model, analog channel) Perimeter Protection
 Up to 4 channels (advanced model, analog channel) human face recognition
 Support smart playback to enhance playback efficiency
Network & Ethernet Access
 Support Hik-Connect & DDNS (Dynamic Domain Name System)
 Output bandwidth limit configurable
 Specification
Facial Recognition
Face Picture Library
Up to 16 face picture libraries ;
HDD damage will not cause data loss in the face picture library, because the library has
been backed up by HDD and flash.
Face Picture Comparison
(Captured from Camera)
4-ch face picture comparison alarm (HD analog camera)
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog
channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
Human/Vehicle Analysis Up to 8-ch (advanced model)
Facial Detection
Facial Detection and Capture
Face picture detection, face picture search；
4-ch face picture capture
Video and Audio
IP Video Input 8-ch (up to 40-ch), each up to 6 MP resolution,
Analog Video Input
32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×
1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback 16-ch
HDTVI Input
3K(2960 x 1665)@25/20fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4
MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input
5 MP(2560 × 1944)@20fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps,
720P@25/30fps
HDCVI Input
3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30
fps,1080P@25/30 fps, 720P@25/30fps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)，32-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP
lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP
lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps
(N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps
(N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p
lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate 32 Kbps to 10 Mbps
Dual-stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Decoding
Decoding Capability up to 24-ch 1080P@30fps
Network
Total Bandwidth 256Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF, ISUP
Remote Connection 128
Network Interface 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 2 SATA interfaces
Capacity Up to 12 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
USB Interface
Front panel: 1 × USB 2.0
Rear panel: 2 × USB 3.0
Alarm In/Out N/A (optional to support)
General
Power Supply 12 VDC, 5 A
Consumption ≤ 60 W
Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
